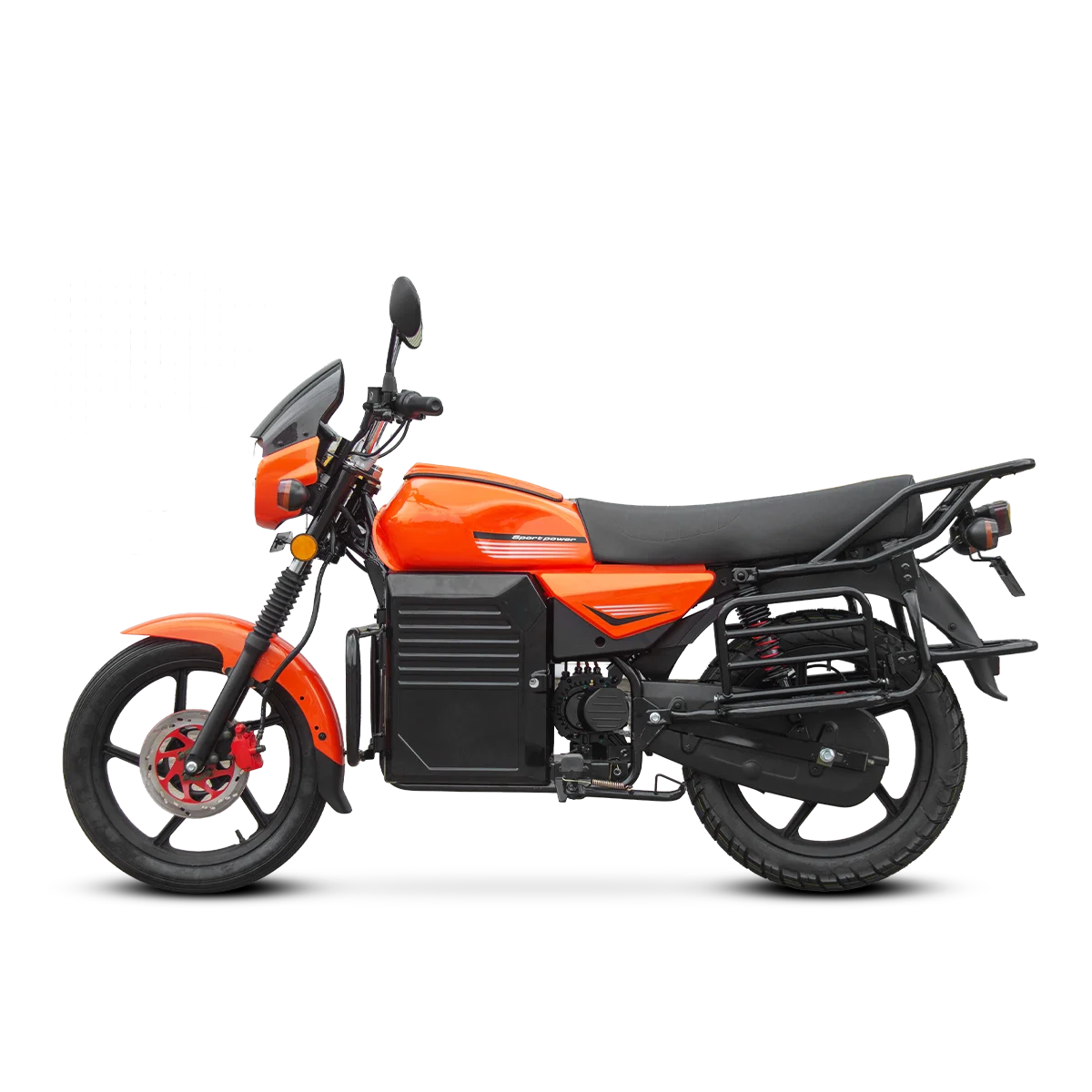

Y25

180 kg Load Capacity
Ready For Daily Work

Y25
Y25
Electric Motorcycle

Description

Specifications

Technical Parameters

Dimensions (mm):2040 × 770 × 1050
Wheelbase (mm):1390
Curb Weight (kg):143
Max. Load Capacity (kg):180
Max. Speed (km/h):85
Range:80–120 km
Motor:6-Phase Planetary Gear Hub Motor, 72 V
Rated / Peak Power:5 kW / 10 kW
Peak Torque:385 N·m
Peak Motor Speed:810 rpm
Controller:Bus 100 A / Phase 450 A
Battery:60 Ah LFP (Lithium Iron Phosphate)
Battery Dimensions (mm):300 × 270 × 345
Charging:15 A, 5 h, 2000 cycles
Planetary Gear Ratio:4.28:1
Front / Rear Tires:FR: 80/90-17; RR: 100/80-17
Braking System:Front & Rear Disc Brake
Rear Shock Absorber:Hydraulic Twin-Spring
Climbing Angle:≥30°
Kinetic Energy Recovery:YES
Loading Quantity (40′ HQ):CKD: 168 units / SKD: 105 units

*The specs is only for your reference. The specifications may be subject to change due to local laws and regulations in different countries and regions.
